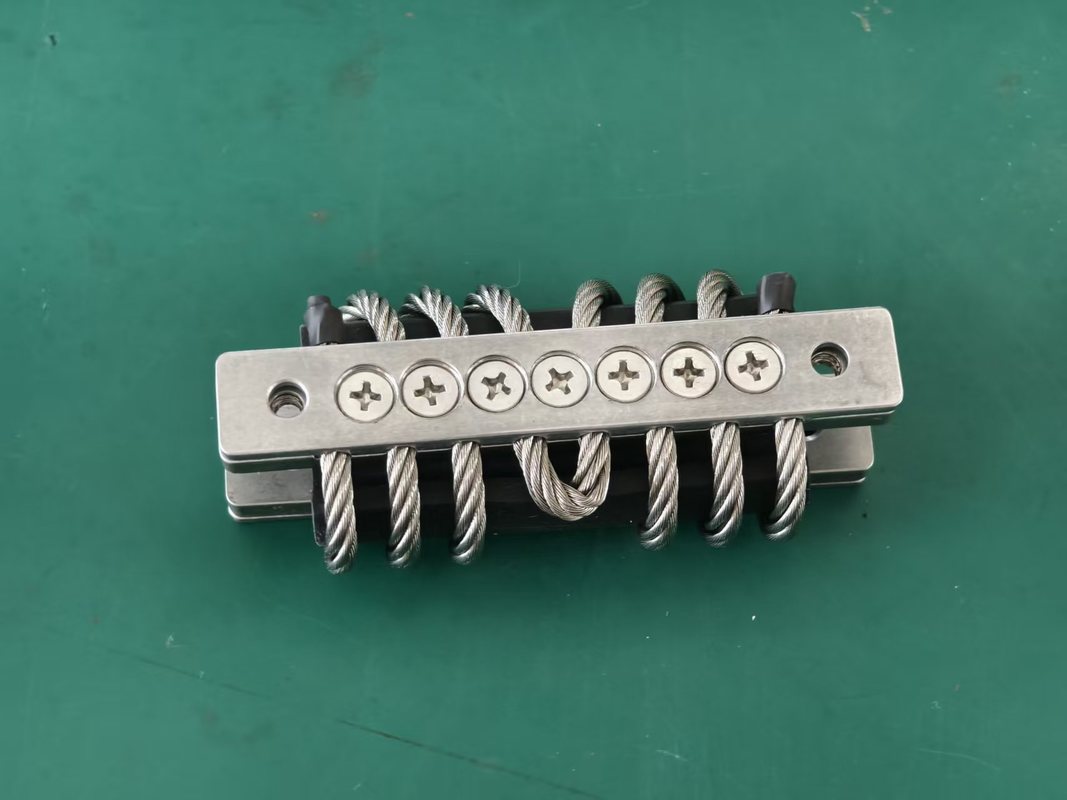

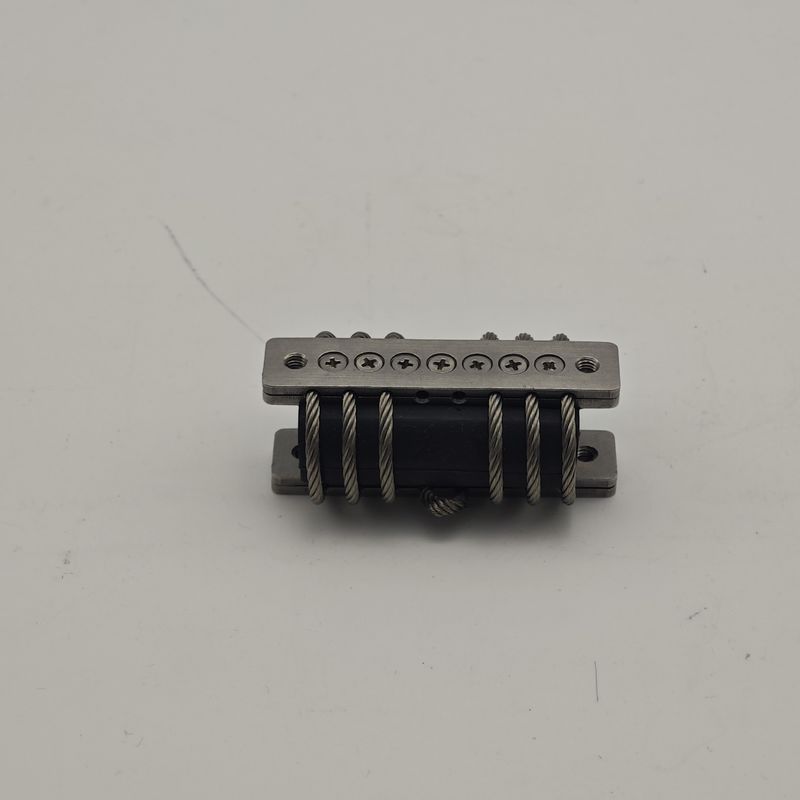

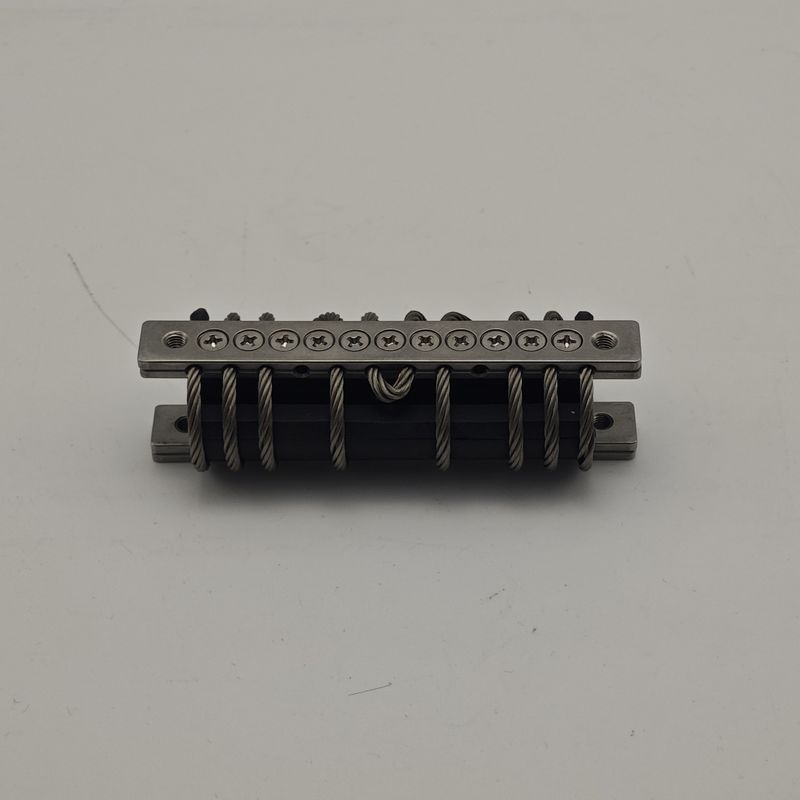

Name: GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-50A ((N)
Availability: InStock

Para casa > produtos > produtos customizados >

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

High Fatigue Strength Vibration Isolator

Thermal Shock Resistance Wire Rope Isolator

Long-lasting Durability Shock Absorber

Lugar de origem:

China

Marca:

Hoan

Número do modelo:

GX-50A ((N)

Contacte-nos

Solicite um orçamento

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

Detalhes do produto

Temperatura de serviço:

1000 ℃ -1800 ℃

Resistência ao choque térmico:

Boa resistência ao choque térmico

Grossura:

33mm

Opções de envio:

Personalizável

Personalizado:

Sim

Controle de qualidade:

Personalizável

Opções de pagamento:

Personalizável

Atendimento ao Cliente:

Disponível

Estabilidade Química:

Estabilidade química extremamente elevada

Impressão:

Sim

Mercado:

Mercados europeus e americanos

Tempo de produção:

Personalizável

Tamanho:

Personalizável

Destacar:

High Fatigue Strength Vibration Isolator

Thermal Shock Resistance Wire Rope Isolator

Long-lasting Durability Shock Absorber

Termos de pagamento e envio

Quantidade de ordem mínima

Termos de pagamento

L/C, D/A, T/T, D/P, MoneyGram, Western Union

PRODUTOS CONEXOS

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

Obtenha o melhor preço

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

Obtenha o melhor preço

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

Obtenha o melhor preço

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Obtenha o melhor preço

Contacte-nos

86-29-88292913

Contacte agora

Descrição do produto

Upgrade Your Equipment's Vibration Control with GX-50AN Customized Products by Xi'an Hoan Microwave

GX-N Series Wire Rope Vibration Isolators

When selecting a vibration isolator, the initial purchase cost is merely the tip of the iceberg. The true value lies in the product's service life, maintenance requirements, and prevention of downtime losses.

Long-lasting Durability, Controllable Costs

Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators deliver exceptional total lifecycle value with their ultra-long fatigue life and near-maintenance-free features.

Key advantages of the GX-N Series:

Constructed with high fatigue strength stainless steel wire rope for minimal performance degradation
Maintains stability through millions of vibration cycles without cracking or deformation
Potential to last the entire service life of your equipment
Significantly reduces spare parts and maintenance labor costs
Ensures stable operation of main equipment to prevent costly downtime

Structural Dimension Diagram

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Vibration and Impact Performance

Technical Parameters

Technical Parameter	GX-10A(N)	GX-20A(N)	GX-30A(N)	GX-40A(N)	GX-50A(N)	GX-60A(N)
Pz Nominal Load(N)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock(Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Accord with National Military Standard GJB150-16
