Name: Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-20A (N)
Availability: InStock

Para casa > produtos > produtos customizados >

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Quiet Operation Wire Rope Vibration Isolator

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

Lugar de origem:

China

Marca:

Hoan

Número do modelo:

GX-20A (N)

Contacte-nos

Solicite um orçamento

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Detalhes do produto

Material:

Vários materiais disponíveis

Temperatura de serviço:

1000 ℃ -1800 ℃

Personalizado:

Sim

Impressão:

Sim

Forma:

Personalizado, não personalizado

Resistência ao choque térmico:

Boa resistência ao choque térmico

Tamanho:

Personalizável

Estabilidade Química:

Estabilidade química extremamente elevada

Uso:

Vários alimentos, presentes, papelada

Mercado:

Mercados europeus e americanos

Serviço pós-venda:

Personalizável

Palavra-chave:

Materiais refratários

Grossura:

0,15mm

Método de pagamento:

Personalizável

Destacar:

Quiet Operation Wire Rope Vibration Isolator

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

Termos de pagamento e envio

Quantidade de ordem mínima

Termos de pagamento

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

PRODUTOS CONEXOS

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

Obtenha o melhor preço

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

Obtenha o melhor preço

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

Obtenha o melhor preço

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Obtenha o melhor preço

Contacte-nos

86-29-88292913

Contacte agora

Descrição do produto

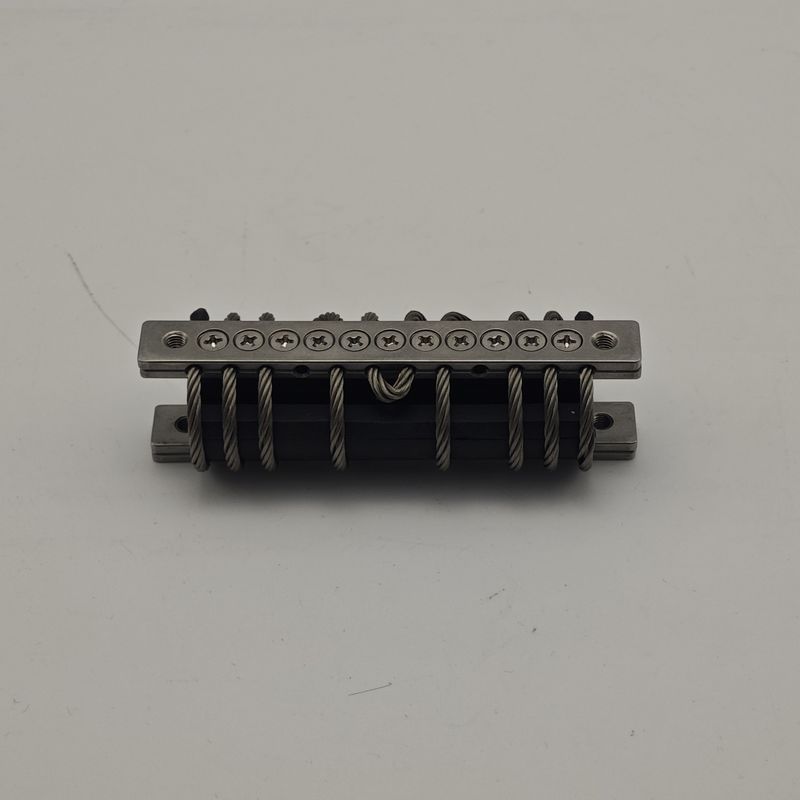

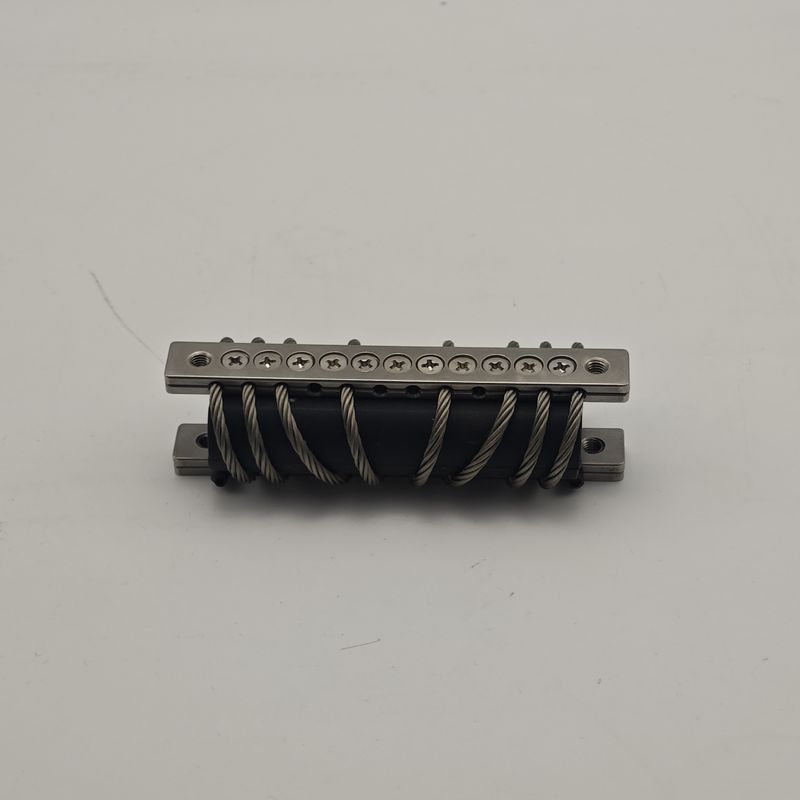

GX-N Series Wire Rope Vibration Isolators

Guardian of Quiet Operation - The Ideal Solution for Stable Equipment Performance

Persistent vibration is a hidden threat to precision equipment, causing loose screws, component wear, inaccurate measurements, and increased noise. Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators effectively isolate harmful vibrations, ensuring quiet and stable equipment operation.

Key Features

Excellent damping performance through dry friction between wire rope strands
Dual-action vibration control: isolation through elastic deformation and energy dissipation via internal friction
Effective vibration isolation across wide frequency bands, especially medium and high frequencies
Significantly reduces operational vibration and structural noise in power equipment
Creates stable working platforms for electronic cabinets and precision instruments
Enhances equipment reliability and extends operational lifespan

Structural Dimension Diagram

Dimensions Table

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Performance Characteristics

Vibration Curve

Impact Curve

Technical Specifications

Technical Parameter	Specification
Nominal Load (Pz)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock (Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Complies with National Military Standard GJB150-16

The GX-N Series has become the trusted vibration isolation solution for numerous leading enterprises across industries, ensuring equipment operates efficiently in tranquility.
