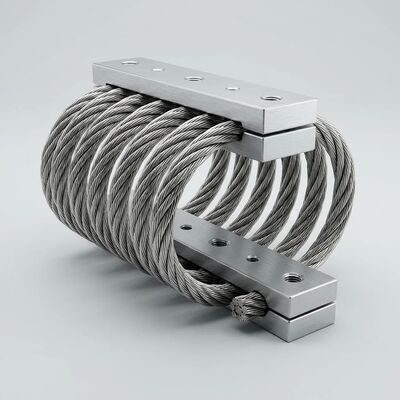

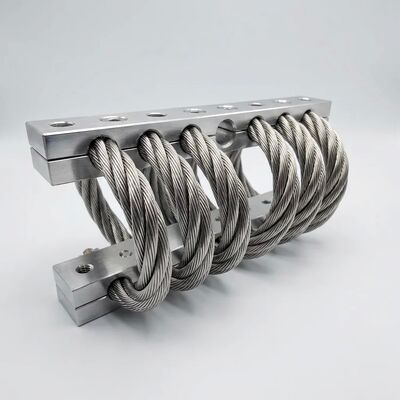

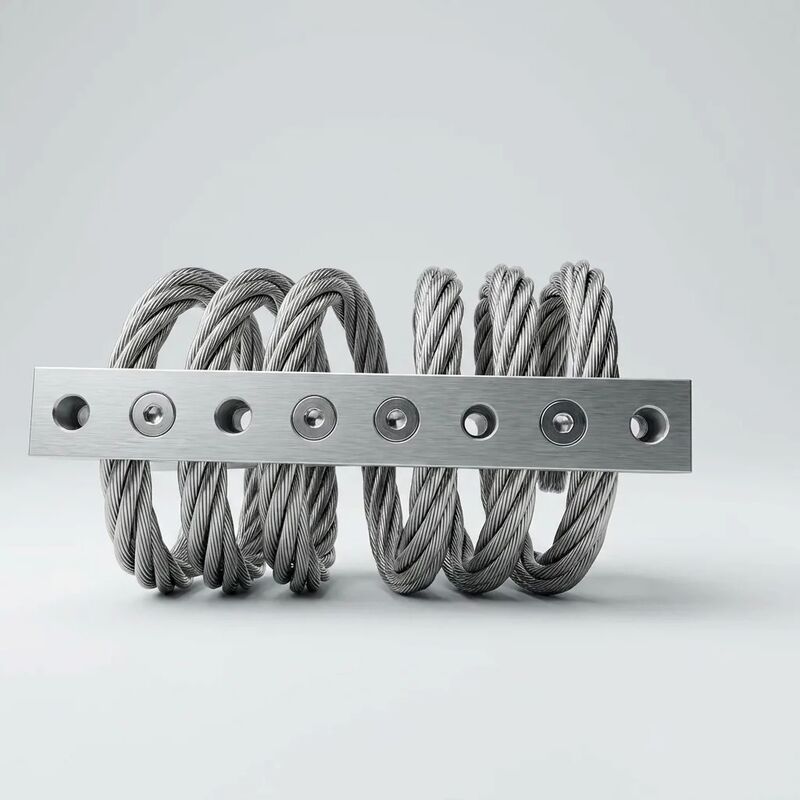

JGX-0956D-110A Wire Rope Vibration Isolator Seamless Drop-In Replacement for Predictable Linear Performance

JGX-0956D-110A — Seamless Drop-In Replacement Wire Rope Vibration Isolator with Predictable Linear Performance

The JGX-0956D-110A solves a persistent industrial challenge: upgrading vibration isolation performance without modifying existing equipment structures, mounting frames, or foundation anchor points. Designed to match standard ISO and DIN bolt patterns, it drops directly into the footprint of most commonly used elastomeric mounts, coil-spring isolators, and legacy wire rope mounts. The all-metal stainless steel architecture then delivers decades of maintenance-free service with predictable, near-linear load-deflection characteristics validated to ≤ ±5% deviation across the 1–800 kg rated range.

What Makes a True Drop-In Replacement

Many isolators claim retrofit compatibility. The JGX-0956D-110A delivers it in measurable terms:

• Bolt-pattern matching — manufactured to standard industrial mounting grids (ISO 299, DIN 281, and common OEM patterns); custom bolt-circle and slot dimensions available for volume orders without tooling charges for quantities above 100 units
• Envelope parity or reduction — the compact helical coil geometry occupies 20–40% less volume than a conventional housing-style spring isolator of equivalent load rating, solving clearance issues in tight equipment bays
• Height preservation — the installed height at rated load is controlled to within ±1 mm of the target specification, meaning connected pipework, conduit, driveshafts, and cable looms require no re-alignment after the swap
• Anchor bolt reuse — the base plate hole diameter and center distance match the existing installation; typically the same anchor bolts can be re-torqued to specification, avoiding the cost and hazard of concrete drilling in operational facilities

The Economic Case for Drop-In Retrofit

Choosing a drop-in replacement isolator over a re-engineering project changes the cost equation decisively. Consider a typical 8-mount industrial fan or pump installation:

• No structural modification — eliminating steel fabrication, welding, and painting saves $2,000–$8,000 per installation in labor and materials alone
• Minimized downtime — bolt-out, bolt-in replacement of 8 mounts can be completed within a single shift (4–6 hours including torque verification) versus 2–5 days for a full mounting system redesign
• No engineering change approval — because the mounting interface is unchanged, many facilities can process the JGX-0956D-110A as a like-for-like maintenance replacement rather than triggering a full engineering change order (ECO) with associated design review, safety assessment, and documentation costs
• Immediate performance gain — switching from aged elastomeric mounts (which typically lose 30–50% of their isolation efficiency within 5 years due to compression set and environmental hardening) to all-metal wire rope isolators restores design-basis vibration attenuation from the first hour of operation

Predictable Linear Performance Across the Entire Load Range

The ≤ ±5% linearity deviation of the JGX-0956D-110A is not a theoretical maximum — it is a production acceptance criterion verified on every batch. This level of linearity delivers practical engineering benefits that non-linear elastomeric mounts cannot match:

• Transmissibility prediction without guesswork — a linear isolator follows the classical single-DOF transmissibility curve exactly; the isolation efficiency at any frequency ratio can be calculated with a pocket calculator rather than requiring iterative nonlinear FEA
• Stable isolation when payload weight changes — equipment that operates with variable mass (filling/emptying tanks, material handling conveyors with changing load, batch processing vessels) sees consistent isolation because the stiffness stays proportional to deflection across the entire range
• No amplitude-dependent stiffness softening — elastomers exhibit the Payne effect: dynamic stiffness decreases as strain amplitude increases, meaning the isolator behaves differently during normal operation versus during a shock event. The JGX-0956D-110A helical steel coil shows no measurable amplitude dependence up to the overload stop
• Matched sets without shimming — in a 4, 6, or 8-point suspension, the linear and repeatable stiffness of each JGX-0956D-110A unit ensures naturally balanced load sharing; no iterative height adjustment or spring-rate sorting is required during installation

Technical Specifications

Industries and Equipment Where Drop-In Replacement Delivers Maximum Value

• HVAC and building services — chiller compressor mounts, cooling tower fan isolators, air-handling unit spring replacement; typically 20–50 mounts per building, making the cumulative downtime savings from bolt-in replacement substantial
• Water and wastewater treatment — centrifugal pump bases, aeration blower skids, decanter centrifuge isolators; stainless steel construction withstands continuous humidity and chemical exposure without the rust-jacking that seizes conventional spring adjusters
• Industrial fan and dust collection systems — direct replacement for failed spring-cup mounts on induced-draft and forced-draft fans; predictable linear stiffness eliminates the seasonal re-adjustment cycle caused by elastomer thermal drift
• Power generation auxiliary equipment — lube oil skids, fuel forwarding pump sets, excitation equipment cabinets on turbine decks; drop-in compatibility avoids hot-work permits and welding procedures in classified areas
• Railway trackside and rolling stock equipment — signal cabinet isolators, underframe compressor mounts, HVAC module suspension; bolt-pattern interchangeability with existing mounts simplifies fleet-wide upgrade programs spread across hundreds of vehicles or wayside locations
• Marine auxiliary machinery — emergency generator mounts, fire pump isolation, desalination skid vibration control; 316 SS construction and drop-in bolt patterns eliminate the need for dry-dock structural modifications during refit

Send us the make and model of your existing mounts or a dimensional sketch of your bolt pattern. We will verify JGX-0956D-110A compatibility within one business day and provide a retrofit specification, pricing, and delivery lead time. Volume pricing available for fleet-wide and multi-site upgrade programs.
