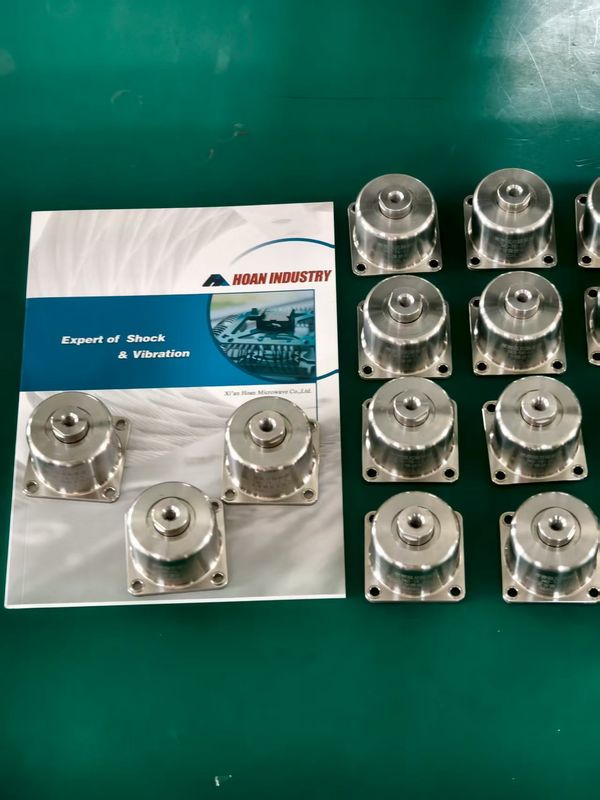

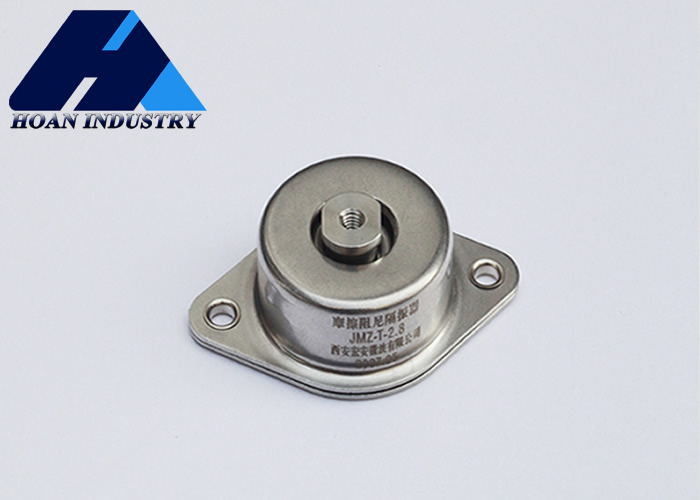

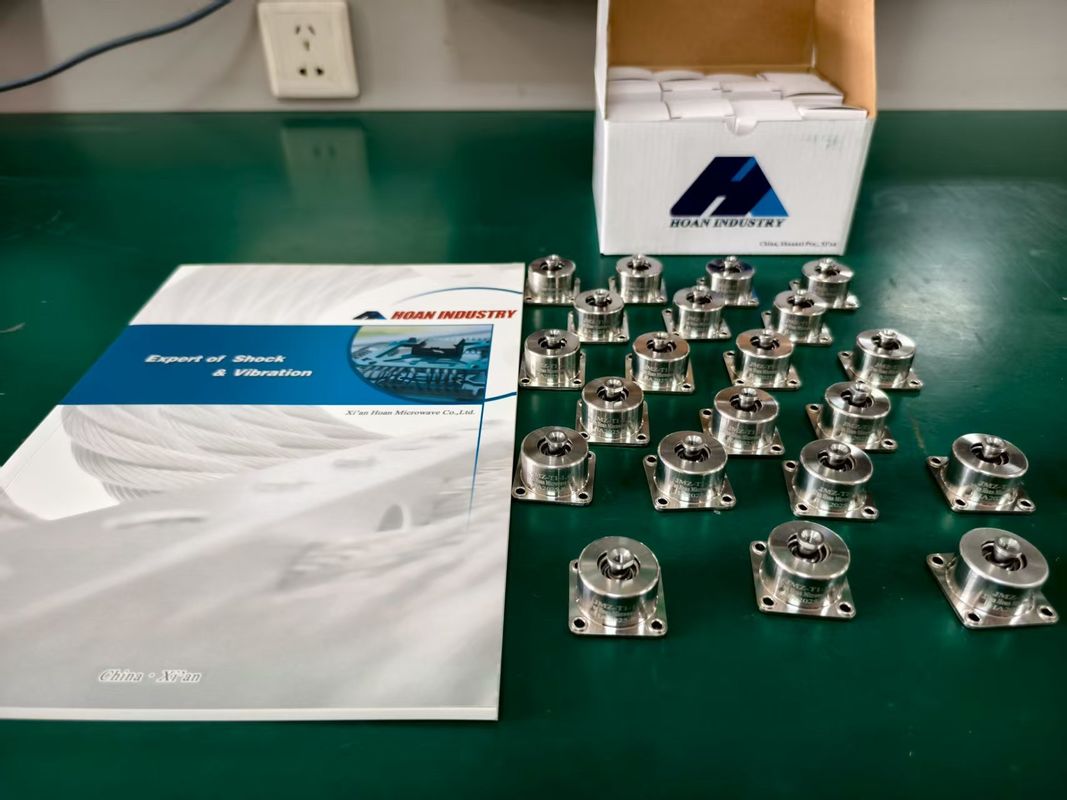

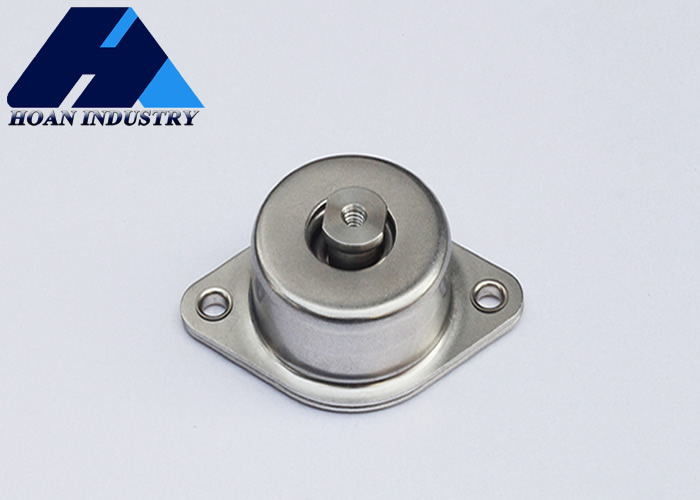

Name: JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK1-40A
Availability: InStock

Para casa > produtos > Isolador de molas >

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Customizable Friction Damping Vibration Isolator

Cylindrical Spring Isolator

Mounting Installation Vibration Isolator

Lugar de origem:

CHINA

Marca:

Hoan

Número do modelo:

JMZ-TK1-40A

Contacte-nos

Solicite um orçamento

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Detalhes do produto

Material:

Aço de molas

Porta:

Xi'an ou especificado

Faixa de temperatura:

-40 ° F a 180 ° F.

Cor:

Prata

Indústrias aplicáveis:

Energia e mineração

Garantia:

1 ano

Temperatura operacional:

-40 ° C a 100 ° C.

Resiliência:

Alto

Absorção de choque:

Excelente

Durabilidade:

Duradouro

Uso:

Isolar vibrações

Método de instalação:

Montagem

Personalização:

Disponível mediante solicitação

Forma:

Cilíndrico

Eficiência do isolamento:

Até 95%

Destacar:

Customizable Friction Damping Vibration Isolator

Cylindrical Spring Isolator

Mounting Installation Vibration Isolator

Termos de pagamento e envio

Quantidade de ordem mínima

Termos de pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

PRODUTOS CONEXOS

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Obtenha o melhor preço

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Obtenha o melhor preço

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

Obtenha o melhor preço

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Obtenha o melhor preço

Contacte-nos

86-29-88292913

Contacte agora

Descrição do produto

JMZ-TK1-40A Friction Damping Vibration Isolators

The Ultimate Solution for Vibration Control in High-Precision Equipment

JMZ-TK Series

Guarding the "Precise Hearts" of "Made in China": The Application of JMZ-TK in High-End Industrial Machine Tools

High-end CNC (Computer Numerical Control) machine tools, known as "industrial machine tools," are the cornerstone of the manufacturing industry. Their machining precision directly determines product quality, and vibration is the primary factor affecting this precision. The JMZ-TK series friction damping vibration isolators from Xi'an Hoan Microwave provide outstanding performance for maintaining stable operation of these precision systems.

Dual Protection Against Vibration

In machine tool applications, vibration originates from two main sources:

External Isolation: Effectively blocks transmission of environmental vibrations through the foundation, creating a static reference platform for machining processes.
Internal Energy Dissipation: High damping characteristics quickly attenuate internal vibrations from spindle rotation and cutting operations, improving surface finish and extending tool life.

Performance Benefits

The JMZ-TK series enables micron-level precision in critical applications including:

Aerospace titanium alloy components
Medical device precision implants
Optical lens molds

Structural Dimensions

Installation Dimensions (mm)
Model	B	M	d	A	C	∅1	∅2	H1	H2
JMZ-TK-2.5A～8A	46	6	4.1	58	20	55	22	36	3.6
JMZ-TK1-25A/40A/50A	63	12	8.2	78	20	70	22	56	6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Limit Displacement	Maximum Vibration Transmissibility ηv≤	Impact Resistance Test	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	4	3	100g	10
JMZ-TK-4A	40	30～50	20	70	7	3	60g	10
JMZ-TK1-25A	250	200～300
JMZ-TK1-40A	400	300～480
JMZ-TK1-50A	500	400～600
