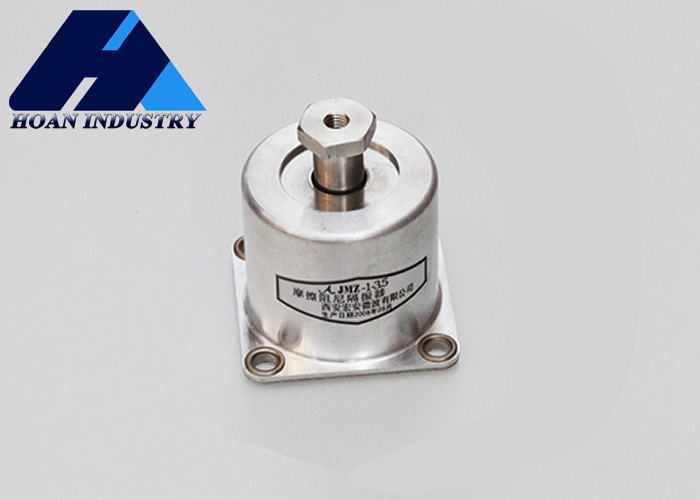

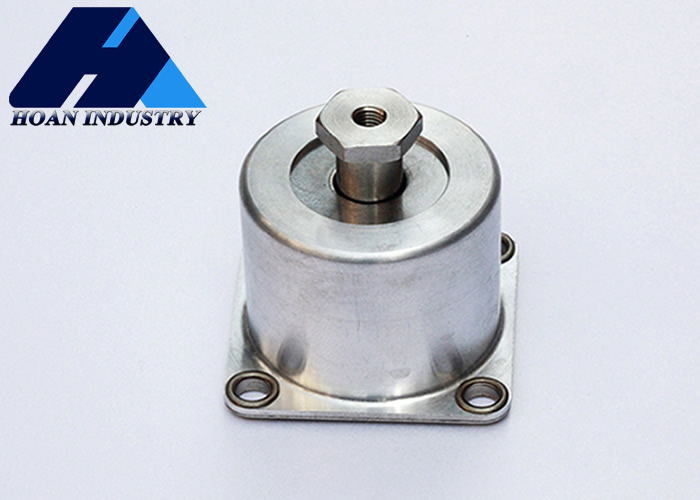

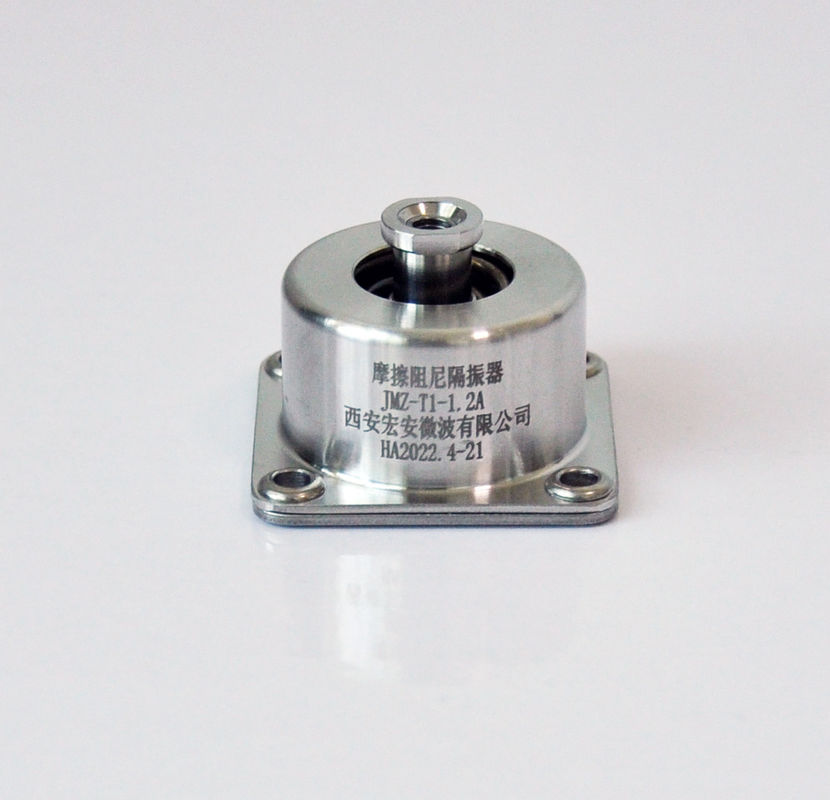

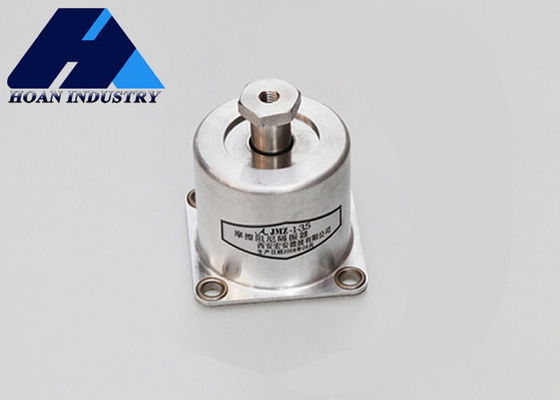

Name: JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.3
Availability: InStock

Para casa > produtos > Isolador de molas >

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

JMZ-T Series Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

Lugar de origem:

CHINA

Marca:

Hoan

Número do modelo:

JMZ-T1-0.3

Contacte-nos

Solicite um orçamento

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

Detalhes do produto

Compatibilidade:

Compatível com vários tipos de máquinas e equipamentos

Durabilidade:

Duradouro

Ajuste:

Ajustável

Redução de ruído:

Eficaz

Características:

Alta capacidade de carga, excelente isolamento de vibração, durável

Dimensões:

Vários tamanhos disponíveis

Cor:

Prata

Relatório de teste de máquinas:

Não disponível

Eficiência do isolamento:

Até 95%

Modelo:

JMZ-T

Uso:

Isolamento de vibração

Manutenção:

Baixo

Resistência ao choque:

Forte

Destacar:

JMZ-T Series Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

Termos de pagamento e envio

Quantidade de ordem mínima

Termos de pagamento

L/C, D/A, D/P, Western Union, MoneyGram, T/T.

PRODUTOS CONEXOS

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Obtenha o melhor preço

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Obtenha o melhor preço

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Obtenha o melhor preço

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Obtenha o melhor preço

Contacte-nos

86-29-88292913

Contacte agora

Descrição do produto

Precision Manufacturing Laboratory Measurement and High-End Communications Vibration Isolation with JMZ-T1-0.3

JMZ-T1 Series: Advanced Vibration Isolation Technology

In precision manufacturing, laboratory measurement, and high-end communications, environmental vibrations can significantly impact equipment performance. The JMZ-T1 Series vibration isolator from Xi'an Hoan Microwave provides an innovative solution to this challenge.

Unlike traditional vibration isolation methods, our friction damping technology acts like a "Tai Chi grandmaster," converting destructive mechanical energy into negligible thermal energy. This process creates an "absolute static zone" for sensitive equipment, ensuring:

Elimination of vibration interference from footsteps, vehicles, and HVAC systems
Protection for nanoscale precision equipment like lithography machines
Clear imaging for electron microscopes and other sensitive instruments
Effective filtering across low to mid-high frequency vibration spectra

Structural Dimensions

Technical Specifications

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Performance Characteristics

Vibration Isolation Performance

Impact Resistance Performance
