Descrição do produto

JGX-0958 Series

Steel Wire Rope Vibration Isolator JGX-0958 redefines industrial vibration isolation with excellent performance and affordable pricing! Made of high-strength galvanized steel wire rope, its three-dimensional nonlinear damping structure efficiently absorbs mechanical vibration, impact, and noise, suitable for vibration isolation of fans, pumps, compressors, and other equipment. With resistance to high and low temperatures (-40℃~110℃), corrosion, and aging, it ensures long-term stable operation in harsh conditions, reducing maintenance costs by eliminating frequent replacements.

Price Advantage at Its Core: Compared with similar imported products, JGX-0958 achieves the same vibration isolation efficiency at less than half the price. Certified by ISO 9001 quality system, its performance parameters meet international standards. Volume purchases enjoy tiered discounts—orders over 100 pieces get a 15% price cut—paired with free installation guidance and a 1-year warranty, delivering cost-effectiveness from procurement to use. Whether for industrial equipment matching or old system renovation, JGX-0958 is a wise choice balancing performance and budget.

P Experience Stable Operation In Harsh Conditions With JGX-0958A-95A High-Strength Steel Wire Rope Vibration Isolator /p 0

Static-Load Curve

P Experience Stable Operation In Harsh Conditions With JGX-0958A-95A High-Strength Steel Wire Rope Vibration Isolator /p 1

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	149	34.0	366	179
2	JGX-0958A-138A	138	37.1	320	152
3	JGX-0958A-108A	108	40.1	242	110
4	JGX-0958A-99A	99	44.7	205	91
5	JGX-0958A-95A	95	49.8	182	79
6	JGX-0958A-54A	54	66.0	86	33
7	JGX-0958A-43A	43	68.1	67	26

P Experience Stable Operation In Harsh Conditions With JGX-0958A-95A High-Strength Steel Wire Rope Vibration Isolator /p 2

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	120.3	47.8	236	103
2	JGX-0958A-138A	111.2	51.8	208	88
3	JGX-0958A-108A	90.8	55.9	159	65
4	JGX-0958A-99A	84.0	63.0	137	54
5	JGX-0958A-95A	79.4	71.1	123	47
6	JGX-0958A-54A	47.7	91.9	60	21
7	JGX-0958A-43A	38	95	47	16

P Experience Stable Operation In Harsh Conditions With JGX-0958A-95A High-Strength Steel Wire Rope Vibration Isolator /p 3

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	93.1	36.1	130	130
2	JGX-0958A-138A	88.5	39.1	112	112
3	JGX-0958A-108A	68.1	42.2	77	77
4	JGX-0958A-99A	63.6	47.2	65	65
5	JGX-0958A-95A	61.3	52.8	60	60
6	JGX-0958A-54A	27.2	68.1	27	27
7	JGX-0958A-43A	20.4	71.7	19	19

* The material of the wire rope splint *

Stainless Steel or Aluminum can be selected

* Surface treatment of aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

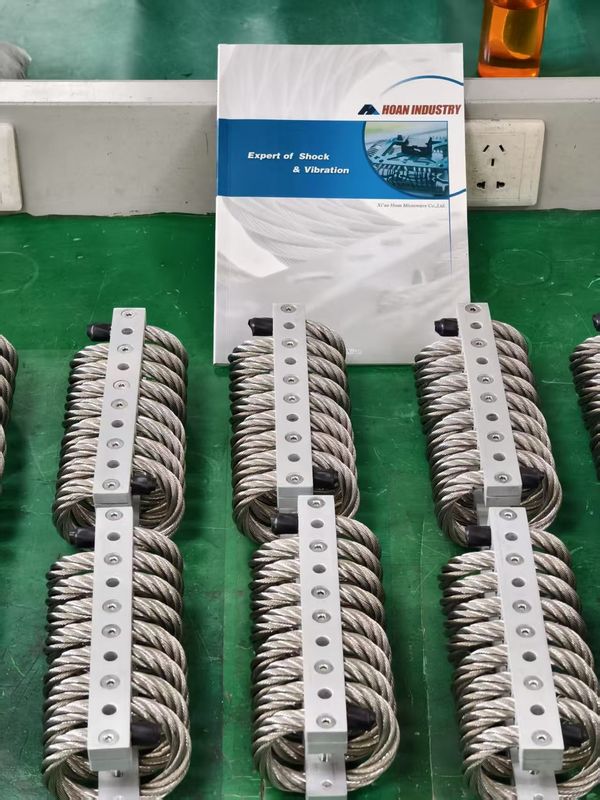

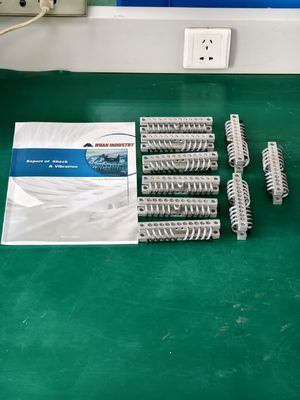

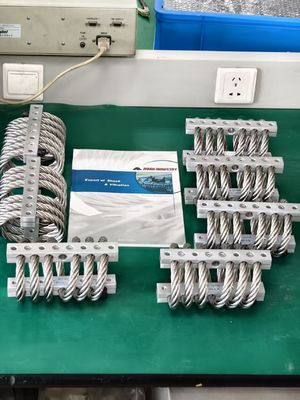

Customer Photos
