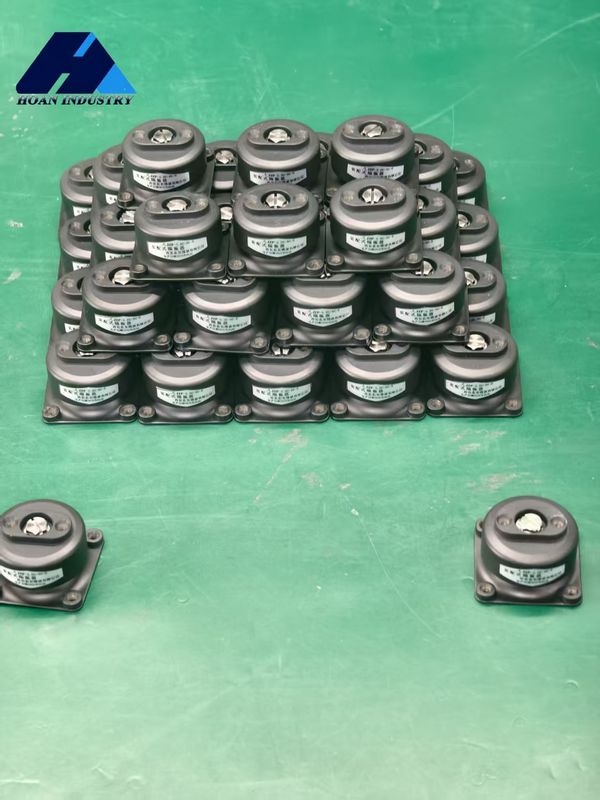

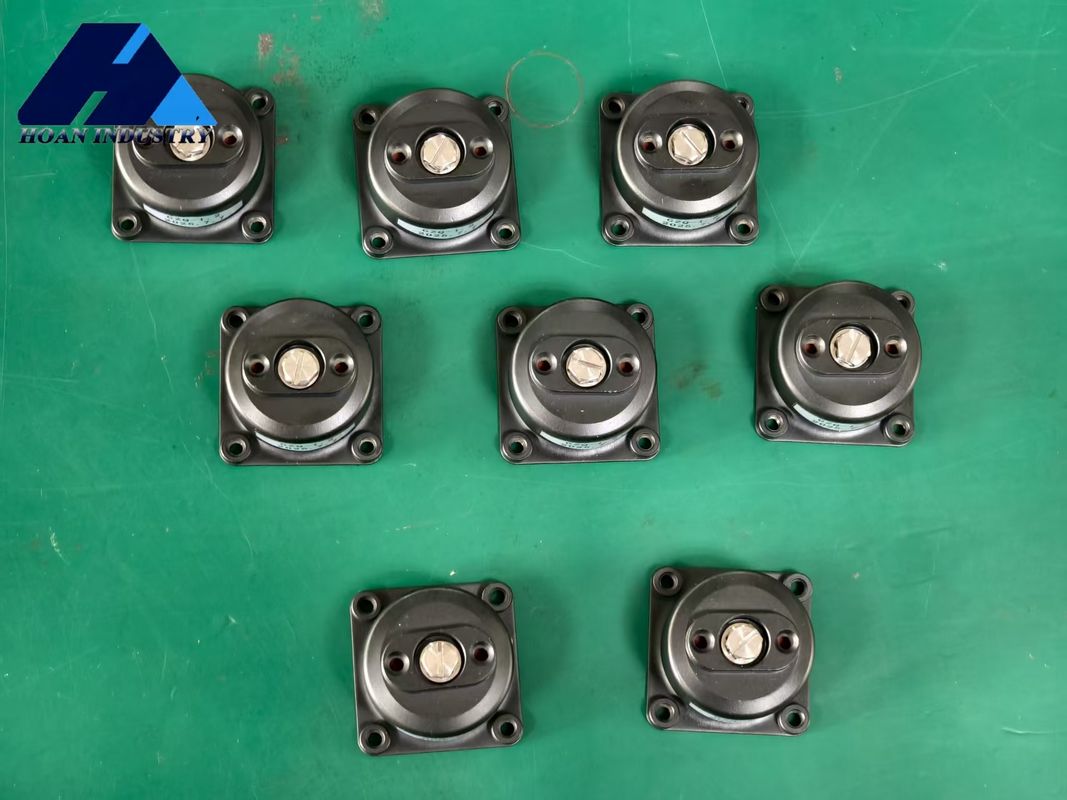

Name: JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.5B-SC
Availability: InStock

Para casa > produtos > amortecedor de borracha >

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Vibration Frequency 5-50Hz Rubber Shock Absorber

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

Lugar de origem:

China

Marca:

Hoan

Número do modelo:

JZP-5.5B-SC

Contacte-nos

Solicite um orçamento

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Detalhes do produto

Resistência às intempéries:

Excelente

Frequência de vibração:

5-50HZ

Instalação:

Fácil de instalar

Appliocation:

Automóveis, Máquinas, Motores

Indústrias Aplicáveis:

Energia e mineração

Resistência:

Químicos, calor e clima

Frequência de isolamento:

5Hz

Características:

Bons elásticos, vestem a resistência

Comprimento:

3-24 polegadas

Flexibilidade:

Flexível

Recurso:

Isolamento de vibração

Carga estática máxima:

5,5 kg

Destacar:

Vibration Frequency 5-50Hz Rubber Shock Absorber

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

Termos de pagamento e envio

Quantidade de ordem mínima

Termos de pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

PRODUTOS CONEXOS

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Obtenha o melhor preço

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Obtenha o melhor preço

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Obtenha o melhor preço

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Obtenha o melhor preço

Contacte-nos

86-29-88292913

Contacte agora

Descrição do produto

JZP-5.5B-SC Rubber Shock Absorbers for Easy Installation and Maintenance with User-Centric Design

JZP-B-SC Series

Easy Installation, Hassle-Free Maintenance - User-Centric Design of the JZP Series Vibration Isolators

A high-quality engineering product should not only deliver outstanding performance but also offer a superior user experience. When designing the JZP Series On-Vehicle Modular Vibration Isolators, Xi'an Hoan Microwave Co., Ltd. fully considered the convenience of installation, commissioning, and maintenance, striving to make advanced technology simple and user-friendly.

The Essence of "Modular" Design

The "modular" feature of the JZP Series means it typically comes as a complete, standardized unit. Users do not need to mix damping materials on-site or perform complex structural assembly. In most cases, only common tools and bolt connections are required to firmly mount equipment on the vehicle base via the JZP Vibration Isolators. This significantly lowers the technical threshold and time cost of installation, while avoiding performance degradation caused by improper installation.

Visualization and Maintainability

Many products in the JZP Series are designed with intuitive markings and error-proof structures to ensure correct installation orientation. Their structure is usually easy to inspect, allowing users to visually check for obvious aging or damage to elastic components. For applications requiring regular inspection or replacement, the modular design enables quick and cost-effective replacement of individual vibration isolators--no need to disassemble the entire equipment.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Curve of JZP-B-SC Series

Vibration

Impact
