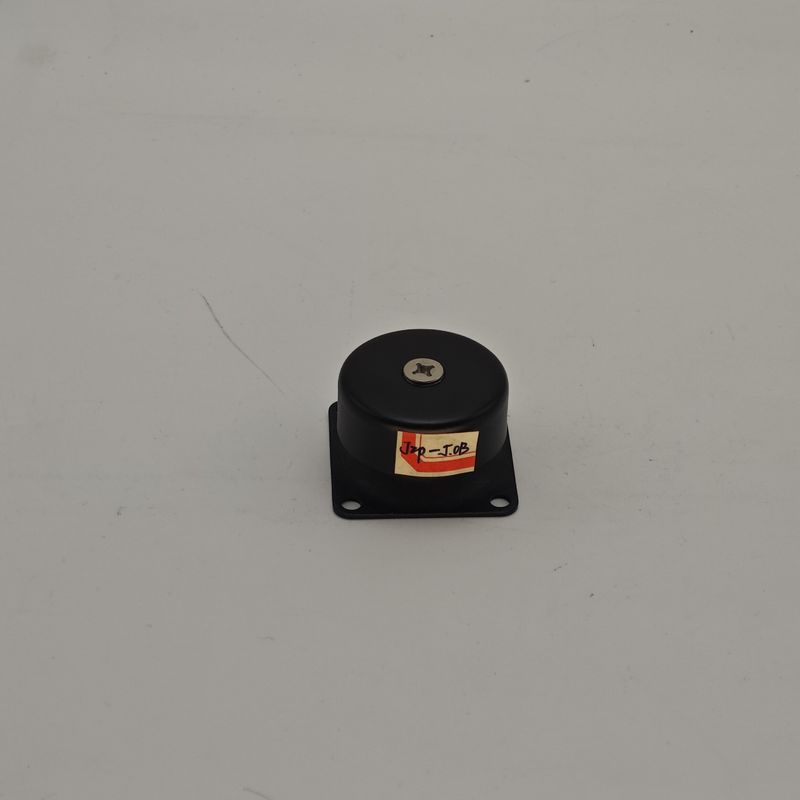

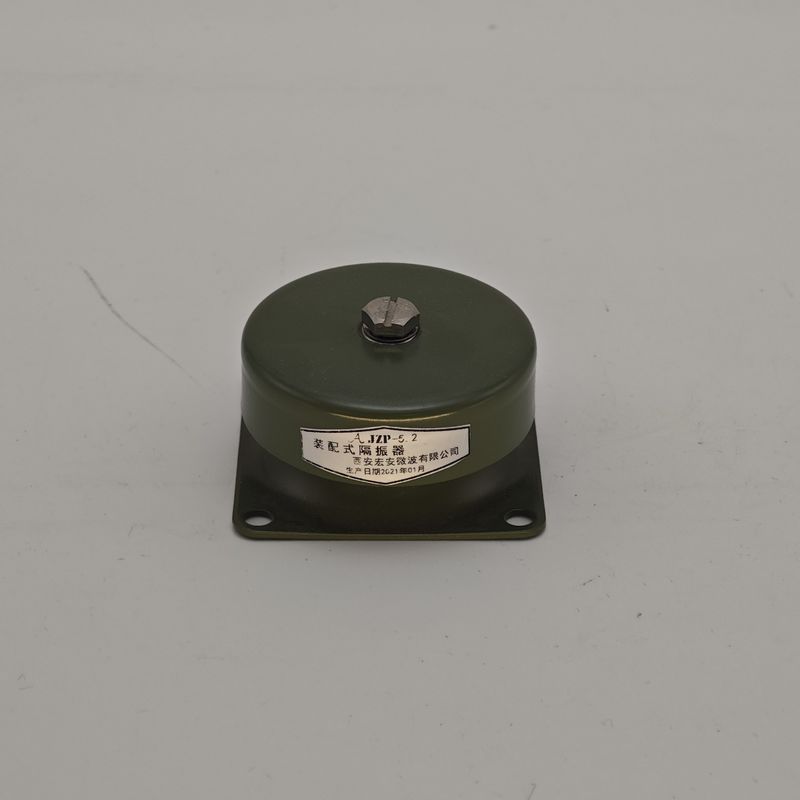

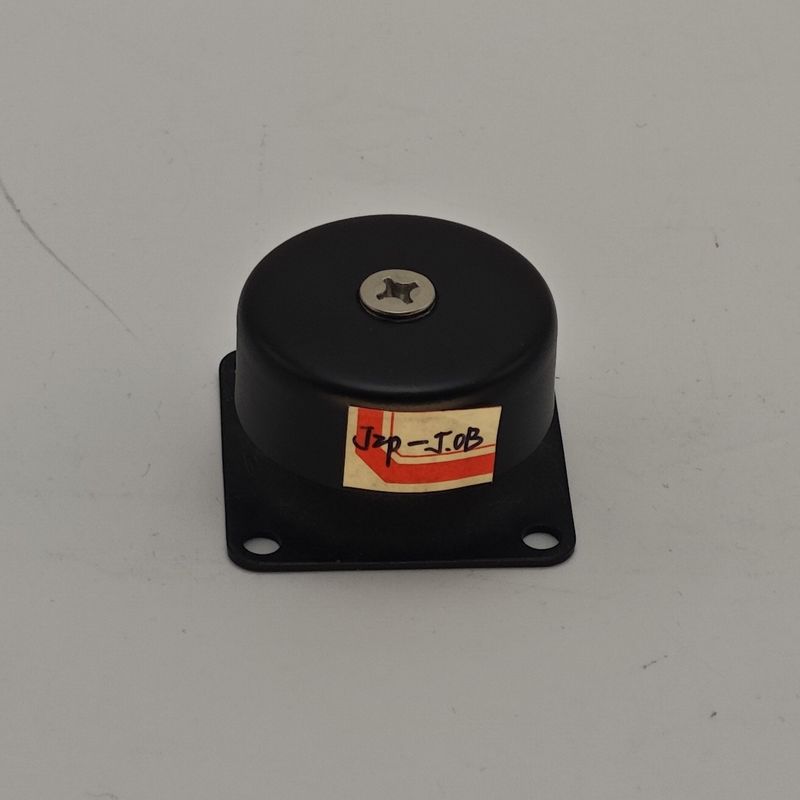

Name: JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.0B-SC
Availability: InStock

Para casa > produtos > amortecedor de borracha >

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

10Hz to 100Hz Frequency Range Rubber Shock Absorber

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

Lugar de origem:

China

Marca:

Hoan

Número do modelo:

JZP-5.0B-SC

Contacte-nos

Solicite um orçamento

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Detalhes do produto

Faixa de frequência de vibração:

10Hz a 100Hz

Porta:

Xi'an ou especificado

Após o serviço de garantia:

suporte on-line

Desempenho:

À prova de choque

Resistência à vibração:

Alto

Tipo de marketing:

Novo produto 2025

Característica:

Frequência de trabalho ampla, longa vida útil

OEM:

Sim

Tipo de montagem:

Rosqueado

Uso:

Absorvendo choques e vibrações

Temperatura de trabalho:

-55 ~ +120

Cor:

Preto

Custo:

Acessível

Destacar:

10Hz to 100Hz Frequency Range Rubber Shock Absorber

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

Termos de pagamento e envio

Quantidade de ordem mínima

Termos de pagamento

L/C, D/A, D/P, Western Union, T/T, MoneyGram

PRODUTOS CONEXOS

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Obtenha o melhor preço

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Obtenha o melhor preço

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Obtenha o melhor preço

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Obtenha o melhor preço

Contacte-nos

86-29-88292913

Contacte agora

Descrição do produto

JZP-5.0B-SC Vibration Isolators - Tested Rubber Shock Absorbers for On-Vehicle Efficiency Validation

JZP-B-SC Series

From Lab to Road: Rigorous Testing and Quality Validation of the JZP Series Vibration Isolators

The reliability of a vibration isolator's performance cannot be based solely on theoretical calculations—it must withstand rigorous practical testing. Xi'an Hoan Microwave Co., Ltd. maintains a comprehensive testing and validation system for the JZP Series On-Vehicle Modular Vibration Isolators, from laboratory evaluations to real-vehicle trials, ensuring every product meets the highest standards.

Precise Evaluation in Laboratory Environments

During development, JZP Series prototypes undergo professional vibration testing:

Sinusoidal sweep frequency tests determine natural frequency and transmissibility curves
Random vibration tests simulate real road conditions to verify isolation efficiency
Shock tests evaluate ultimate load-bearing capacity and buffering performance

Environmental Adaptability Tests

The JZP Series undergoes extreme condition testing to ensure performance reliability:

High-low temperature alternating tests
Damp-heat resistance tests
Salt spray corrosion tests

Real-Vehicle Road Tests

Final validation comes from actual vehicle performance testing across diverse road conditions, with acceleration sensors collecting vibration data to demonstrate the JZP Series' superior isolation capabilities.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Performance Curves

Vibration

Impact
