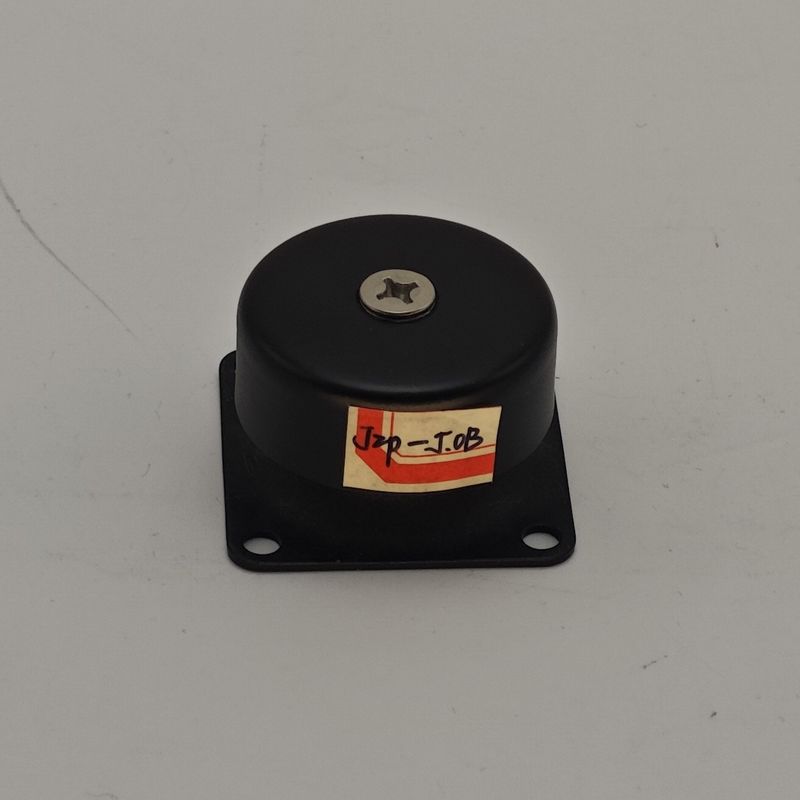

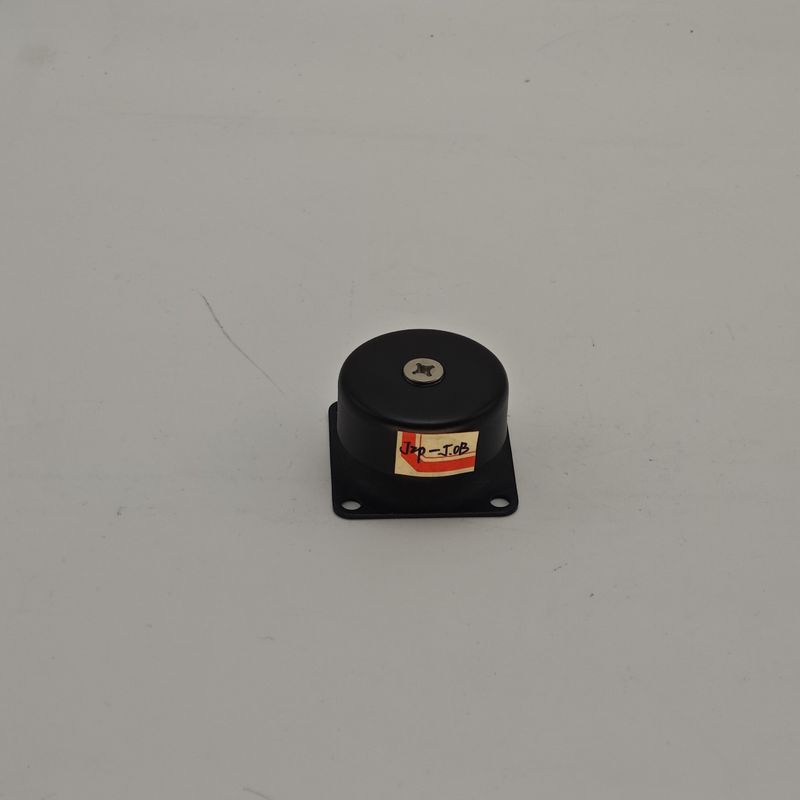

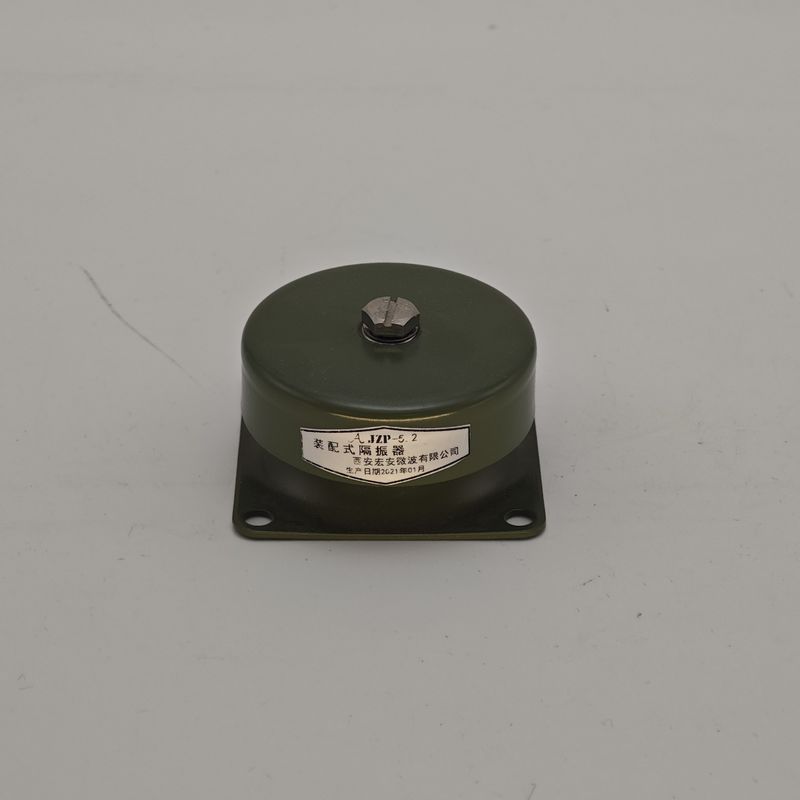

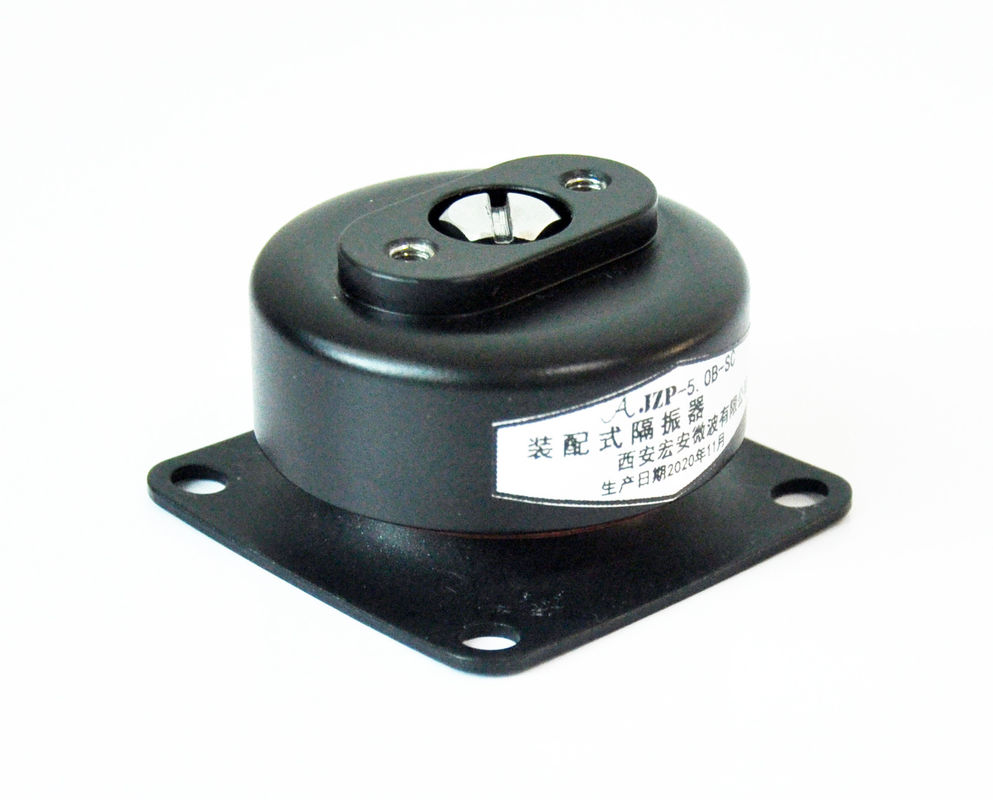

Name: Customized Stability JZP-15-SC-SC1 Rubber Shock Absorber with 14-15KG Load Range and 10 Hz Natural Frequency
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-15-SC-SC1
Availability: InStock

Para casa > produtos > amortecedor de borracha >

Customized Stability JZP-15-SC-SC1 Rubber Shock Absorber with 14-15KG Load Range and 10 Hz Natural Frequency

14-15KG Load Range Rubber Shock Absorber

10 Hz Natural Frequency Vibration Isolator

M4*10 Screw JZP-SC-SC1 Series

Lugar de origem:

CHINA

Marca:

Hoan

Número do modelo:

JZP-15-SC-SC1

Contacte-nos

Solicite um orçamento

Customized Stability JZP-15-SC-SC1 Rubber Shock Absorber with 14-15KG Load Range and 10 Hz Natural Frequency

Detalhes do produto

Número de fios:

Instalação fácil:

Simples e fácil de instalar

Appliocation:

Automóveis, Máquinas, Motores

Tipo:

Ruído e Atenuação

Tipo de instalação:

Horizontal/vertical

Estilo de design:

Industrial

Faixa de carga:

14,15KG

Flexibilidade:

Flexível

Qualidade:

Grade Industrial

Porta:

Xi'an ou especificado

Parafuso:

M4*10

Características:

Bons elásticos, vestem a resistência

Frequência natural:

10 Hz

Destacar:

14-15KG Load Range Rubber Shock Absorber

10 Hz Natural Frequency Vibration Isolator

M4*10 Screw JZP-SC-SC1 Series

Termos de pagamento e envio

Quantidade de ordem mínima

Termos de pagamento

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

PRODUTOS CONEXOS

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Obtenha o melhor preço

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Obtenha o melhor preço

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Obtenha o melhor preço

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Obtenha o melhor preço

Contacte-nos

86-29-88292913

Contacte agora

Descrição do produto

Customized Stability: How Xi'an Hoan Tailors Vibration Isolation Solutions for Your Special Equipment with JZP-15-SC-SC1

JZP-SC-SC1 Series

While standardized products can cover most applications, special equipment and extreme working conditions often require targeted solutions. Xi'an Hoan Microwave's JZP-SC-SC1 series serves as both a mature product platform and a customizable vibration isolation technology carrier.

Our experienced engineering team provides professional vibration isolation analysis and solution design tailored to your specific requirements. Customization services include:

Load Customization: Adjust internal structures to accommodate special weight requirements beyond standard ranges, ensuring optimal performance.
Interface Customization: Non-standard upper/lower panel designs with specific screw hole positions, diameters, and materials for seamless equipment integration.
Size and Stiffness Customization: Optimize dimensions for limited spaces while fine-tuning natural frequency and damping ratio for specific vibration frequencies.
Environmental Adaptability: Special surface treatments and materials for anti-corrosion, anti-magnetic, or extreme temperature applications.

This tailored approach enables the JZP-SC-SC1 series to integrate seamlessly into diverse applications—from precision laboratory equipment to heavy industrial machinery—delivering optimal vibration control solutions.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-5.2-SC-SC1	5.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-6.0-SC-SC1	6.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-7.0-SC-SC1	7.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-7.5-SC-SC1	7.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-9.0-SC-SC1	9.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-10.5-SC-SC1	10.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-13.5-SC-SC1	13.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-15-SC-SC1	15	≤0.3	-45～+65	41.5±5	100g 12 times	8
