Name: JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-7.5-SC-SC1
Availability: InStock

Para casa > produtos > amortecedor de borracha >

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Up to 90% Vibration Isolation Vibration Isolator

M5 Mounting Thread Size Rubber Shock Absorber

50N/mm Axial Stiffness Friction Damping Vibration Isolator

Lugar de origem:

CHINA

Marca:

Hoan

Número do modelo:

JZP-7.5-SC-SC1

Contacte-nos

Solicite um orçamento

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Detalhes do produto

Alto:

36mm

Estilo de design:

Industrial

Certificações:

ISO 9001: 2015

Rigidez axial:

50n/mm

Manutenção:

Baixa manutenção necessária

Certificação de produto:

ISO 9001

Características:

Resistente ao calor, rasgo resistente

Tamanho do fio de montagem:

Material:

Borracha

Isolamento de vibração:

Até 90%

Tipo:

Ruído e Atenuação

Garantia:

1 ano

COMPATIBILIDADE:

Universal

Destacar:

Up to 90% Vibration Isolation Vibration Isolator

M5 Mounting Thread Size Rubber Shock Absorber

50N/mm Axial Stiffness Friction Damping Vibration Isolator

Termos de pagamento e envio

Quantidade de ordem mínima

Termos de pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

PRODUTOS CONEXOS

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Obtenha o melhor preço

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Obtenha o melhor preço

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Obtenha o melhor preço

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Obtenha o melhor preço

Contacte-nos

86-29-88292913

Contacte agora

Descrição do produto

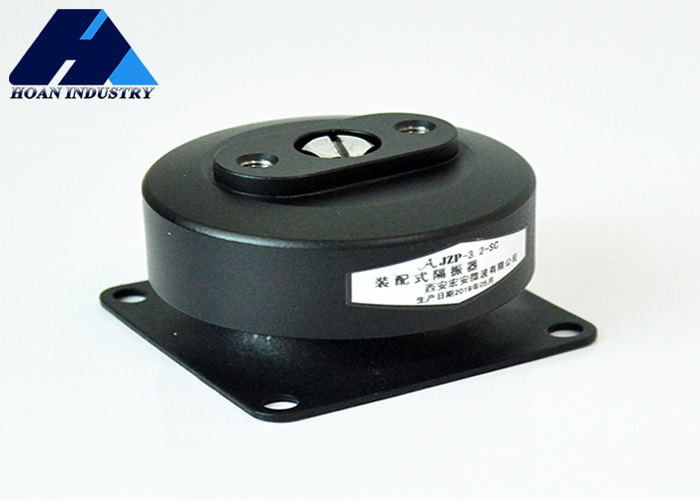

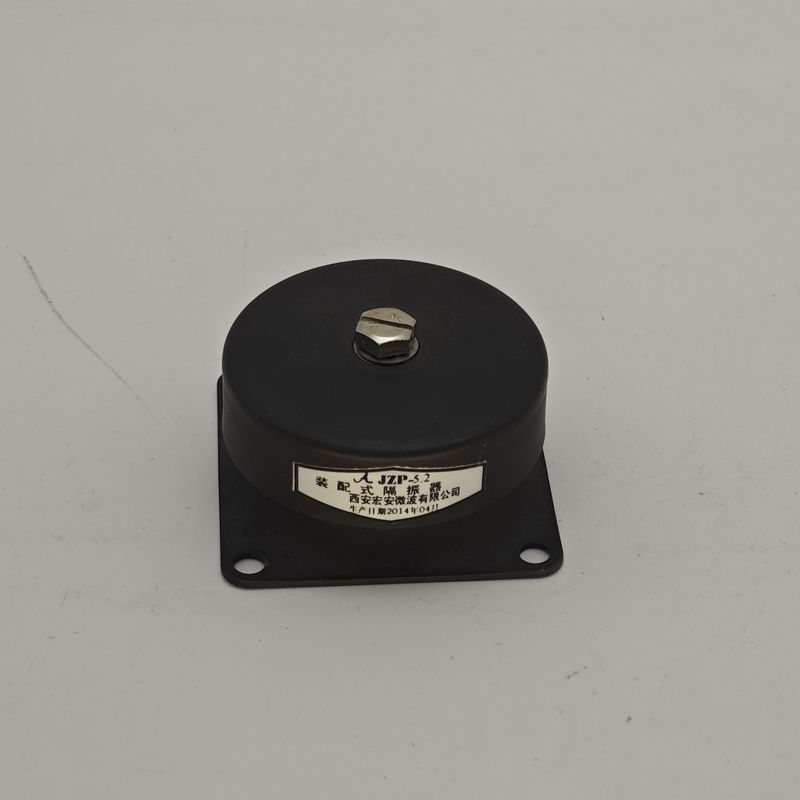

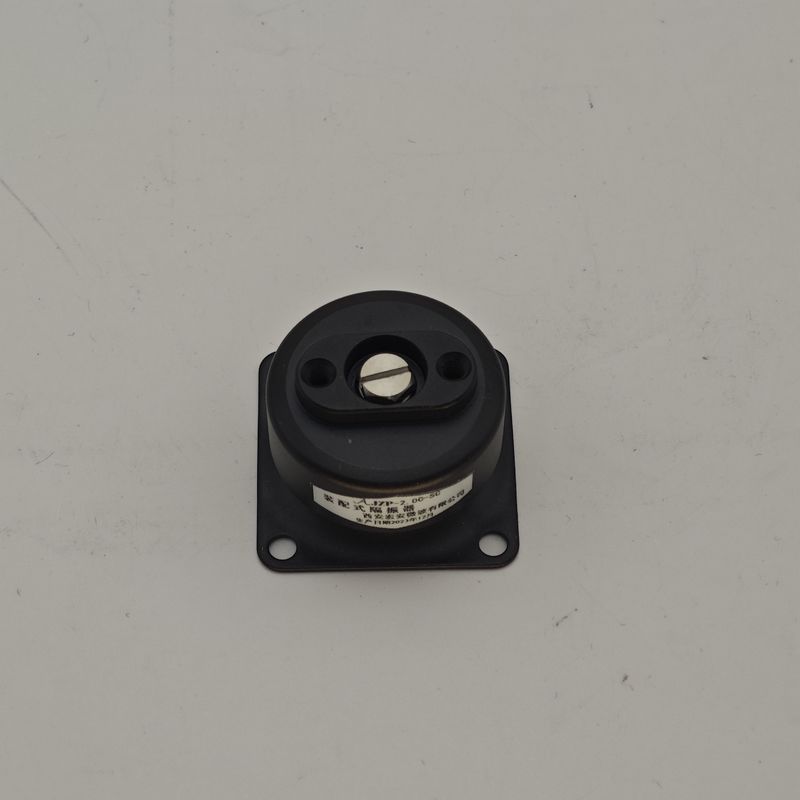

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator

The Ideal Rubber Shock Absorber for Laboratory Equipment

JZP-SC-SC1 Series

Reshaping the "Quiet Foundation" for Precision Equipment: Xi'an Hoan JZP-sc-sc1 Vibration Isolator

In precision manufacturing and measurement environments where micron-level vibration control is critical, the JZP-sc-sc1 series friction damping vibration isolators provide an advanced solution. Designed specifically for high-end precision equipment, these isolators create a dynamically stable foundation that goes beyond basic vibration isolation.

Technical Advantages

Eliminates self-resonance and continuous oscillation common in traditional spring or airbag isolators
High-performance friction damping technology converts vibrational energy into thermal energy for dissipation
Exceptional performance with low-frequency vibrations and structural vibrations
"Immediate stabilization upon stopping" feature minimizes equipment wait time
Military-grade reliability integrated into design

Applications

Ideal for scanning electron microscopes (SEM), wafer inspection equipment, high-precision machine tools, and other applications requiring vibration-free environments.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-5.2-SC-SC1	5.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-6.0-SC-SC1	6.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-7.0-SC-SC1	7.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-7.5-SC-SC1	7.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-9.0-SC-SC1	9.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-10.5-SC-SC1	10.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-13.5-SC-SC1	13.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-15-SC-SC1	15	≤0.3	-45～+65	41.5±5	100g 12 times	8
