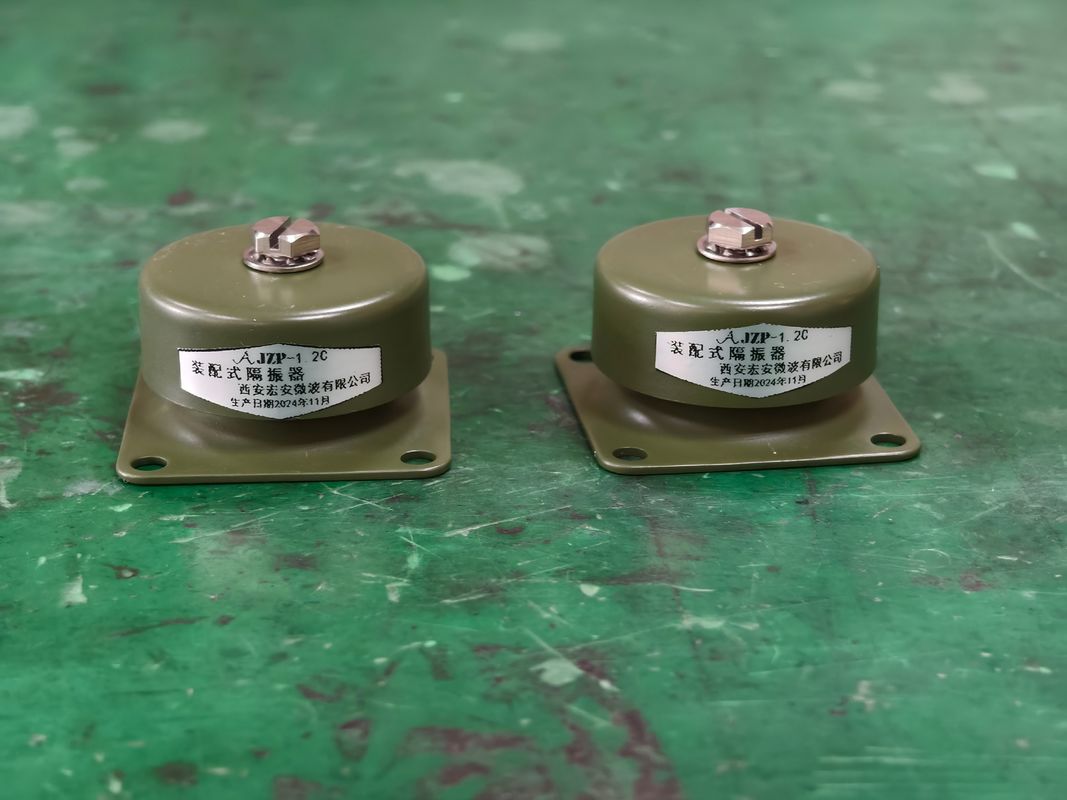

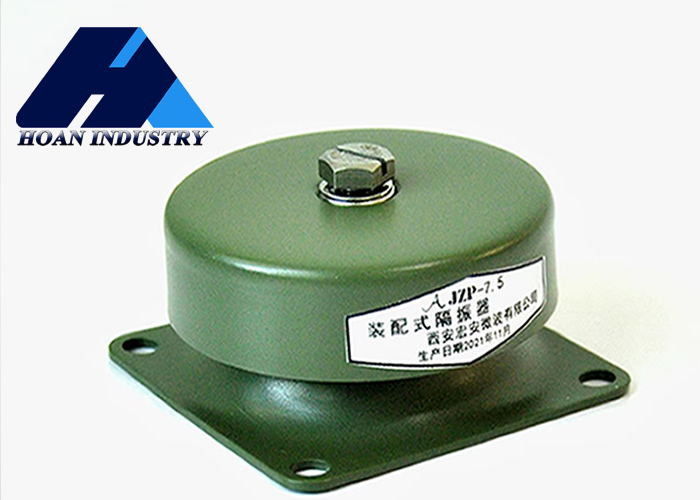

Name: JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-6.0SC-SC1
Availability: InStock

Para casa > produtos > amortecedor de borracha >

JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes

5Hz Isolation Frequency Rubber Shock Absorber

6kg Maximum Load Capacity Vibration Isolator

M5 Mounting Holes Friction Damping Vibration Isolator

Lugar de origem:

CHINA

Marca:

Hoan

Número do modelo:

JZP-6.0SC-SC1

Contacte-nos

Solicite um orçamento

JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes

Detalhes do produto

Frequência de isolamento:

5Hz

Modelo:

JZP

Capacidade de carga máxima:

6 kg

Material:

Borracha

Appliocation:

Automóveis, Máquinas, Motores

Frequência operacional:

Depende do tamanho e tipo

Função:

Absorver energia e dissipá-la como calor

Largura geral:

50mm

Longevidade:

Duradouro

característica:

Frequência de trabalho ampla, longa vida útil

Taxa de primavera:

100-1000 lbs/in

Orifícios de montagem:

Estrutura:

sólido

Destacar:

5Hz Isolation Frequency Rubber Shock Absorber

6kg Maximum Load Capacity Vibration Isolator

M5 Mounting Holes Friction Damping Vibration Isolator

Termos de pagamento e envio

Quantidade de ordem mínima

Termos de pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

PRODUTOS CONEXOS

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Obtenha o melhor preço

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Obtenha o melhor preço

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Obtenha o melhor preço

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Obtenha o melhor preço

Contacte-nos

86-29-88292913

Contacte agora

Descrição do produto

JZP-6.0-SC-SC1 Series - The Most Versatile Vibration Isolation Solution for Industrial Applications

Customized Vibration Isolation Solutions

Xi'an Hoan Microwave's JZP-SC-SC1 series friction damping vibration isolators are engineered for maximum application flexibility in diverse industrial scenarios. These solutions can be precisely tailored through selection, combination, and fine-tuning to meet specific vibration control requirements.

Key Features

Modular design accommodates loads from dozens of kilograms to several tons
Flexible configuration options for individual use or combined systems
Optimized for various applications from laboratory balances to CNC machining centers
Custom development available for specialized requirements
Special surface treatments (nickel plating, passivation) for cleanroom environments
Adjustable damping parameters for impact-resistant applications

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2
JMZ-5.2-SC-SC1	5.2
JMZ-6.0-SC-SC1	6.0
JMZ-7.0-SC-SC1	7.0
JZP-7.5-SC-SC1	7.5
JZP-9.0-SC-SC1	9.0
JZP-10.5-SC-SC1	10.5
JZP-13.5-SC-SC1	13.5
JZP-15-SC-SC1	15

Customer Implementation

This engineering-focused approach ensures the JZP-SC-SC1 series provides optimal vibration isolation solutions tailored to each customer's specific equipment and operational requirements.
