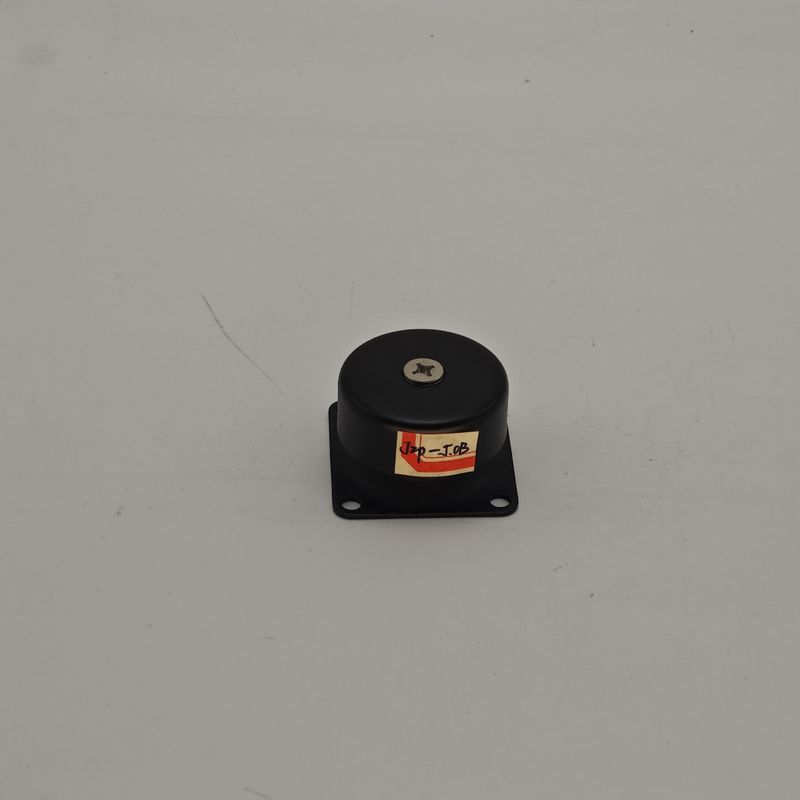

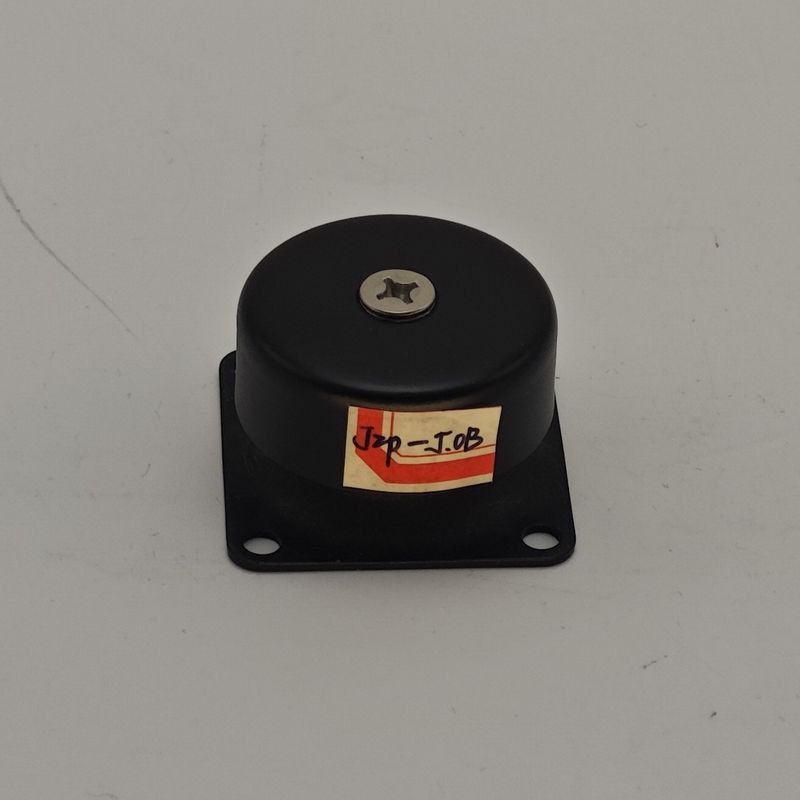

Name: JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-3.2-SC-SC1
Availability: InStock

Para casa > produtos > amortecedor de borracha >

JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment

Resonant Frequency 5-10HZ Rubber Shock Absorber

Damping Ratio 0.5 Vibration Isolator

Up to 90% Vibration Isolation Friction Damping Vibration Isolator

Lugar de origem:

CHINA

Marca:

Hoan

Número do modelo:

JZP-3.2-SC-SC1

Contacte-nos

Solicite um orçamento

JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment

Detalhes do produto

Indústrias aplicáveis:

Energia e mineração

Frequência ressonante:

5-10Hz

Taxa de amortecimento:

0,5

Porta:

Xi'an ou especificado

Tipo de instalação:

Horizontal/vertical

Tipo de isolamento de vibração:

Passiva

Material de cabo de aço:

Aço galvanizado

Produto relativo:

Damper de Backdraft

Peso:

0,2 kg

Acessórios:

Líquido

Isolamento de vibração:

Até 90%

Destacar:

Resonant Frequency 5-10HZ Rubber Shock Absorber

Damping Ratio 0.5 Vibration Isolator

Up to 90% Vibration Isolation Friction Damping Vibration Isolator

Termos de pagamento e envio

Quantidade de ordem mínima

Termos de pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

PRODUTOS CONEXOS

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Obtenha o melhor preço

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Obtenha o melhor preço

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Obtenha o melhor preço

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Obtenha o melhor preço

Contacte-nos

86-29-88292913

Contacte agora

Descrição do produto

JZP-3.2-SC-SC1 The Innovative Rubber Shock Absorber for Precision Equipment Stability

JZP-SC-SC1 Series Friction Damping Vibration Isolator

Redefining stability for precision equipment in manufacturing, laboratory measurement, and high-end communications applications. The JZP-sc-sc1 series from Xi'an Hoan Microwave Co., Ltd. provides an advanced solution for vibration isolation where even micron-level vibrations can compromise performance.

Advanced Friction Damping Technology

Unlike conventional spring or pneumatic isolators, the JZP-sc-sc1 series features an innovative friction damping mechanism that converts destructive vibration energy into thermal energy for dissipation. This technology acts as an "invisible steward" for your equipment, effectively suppressing both continuous low-frequency oscillations and sudden transient impacts.

Key Performance Advantages

Superior full-frequency vibration isolation performance
High damping characteristics significantly reduce resonance peaks
Ensures smooth equipment transitions during startup, shutdown, or external disturbances
Integrates efficient vibration isolation with high load-bearing capacity
Compact, maintenance-free design for reliable long-term operation

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2	Same as above
JMZ-5.2-SC-SC1	5.2	Same as above
JMZ-6.0-SC-SC1	6.0	Same as above
JMZ-7.0-SC-SC1	7.0	Same as above
JZP-7.5-SC-SC1	7.5	Same as above
JZP-9.0-SC-SC1	9.0	Same as above
JZP-10.5-SC-SC1	10.5	Same as above
JZP-13.5-SC-SC1	13.5	Same as above
JZP-15-SC-SC1	15	Same as above

Customer Applications
